Oakworks 3 section ultrasound table

Oakworks 3 section ultrasound table

by Oakworks
# GEN-3-US
Non-stock
Special order, non returnable item, non exchangeable item.
Overweight / oversize item.
Notes: 1 year on upholstery

Included features:

  • 3 Section Top - 30" (76 cm) or 26" (66cm) wide x 72" (183 cm) long
  • Backrest - 34" (86 cm) long
  • Seat - 26" (66cm) long
  • Leg Rest - 11" (28cm) long
  • Motion 1 - Electric Height Range: 19" - 33" (48cm-84cm) low height or 22" - 36" (56-91cm) high height
  • Motion 2 - Electric Trendelenburg/Reverse Tilt ±18°
  • Motion 3 - Electric Fowler Backrest 0-75°
  • Motion 4 - Electric Leg Rest 0-90°

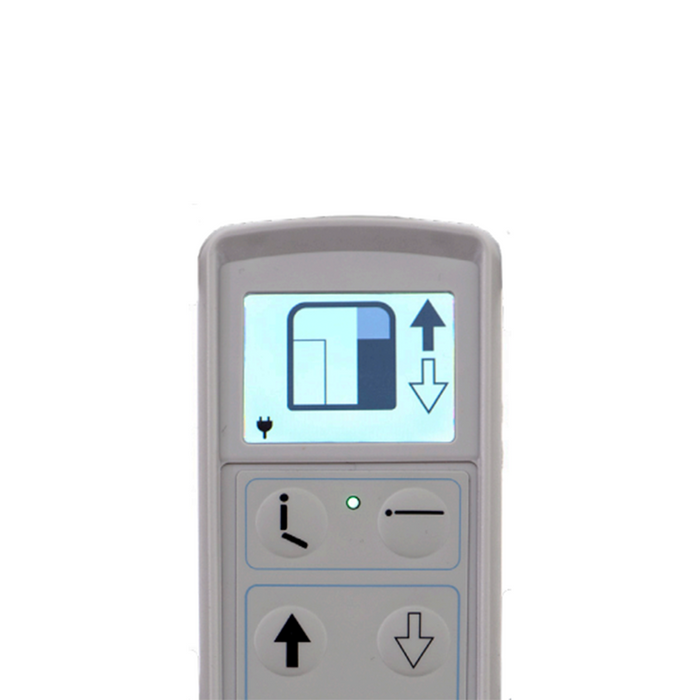

  • Controls - Multi-function hand control
  • Weight Capacity - 550lb (250kg)
  • Product Weight - 359lb (163kg)

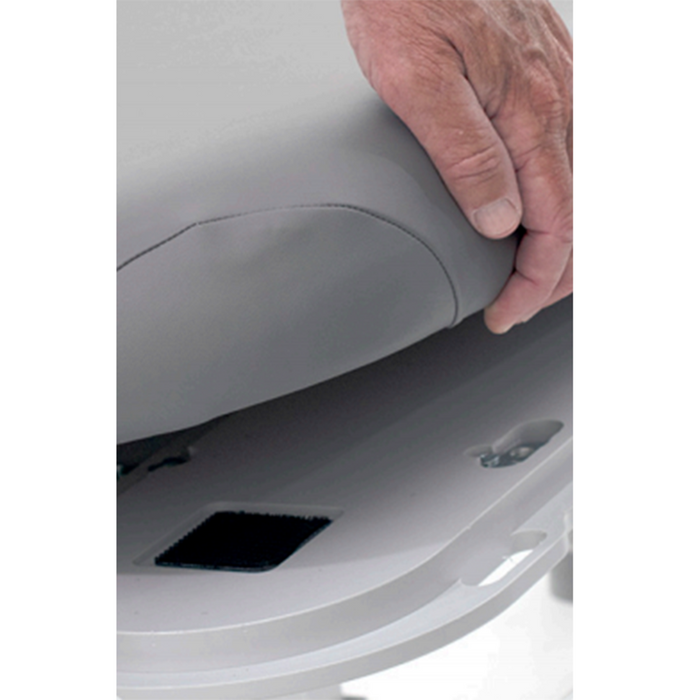

  • Removable Padding System - 3" (8cm) Comfort Foam ™
  • Included Features - 4" (10cm) locking casters, Paper roll holder
  • Warranty - 3 years parts, 2 years labor
  • Safety Listings - FDA listed, CE marked, cETLus listed, CB Certificate
  • Fabric - Premium, PVC free TerraTouch™ Medical Grade Fabric is ISO 10993 Certified. Choice of 11 colors

Options:

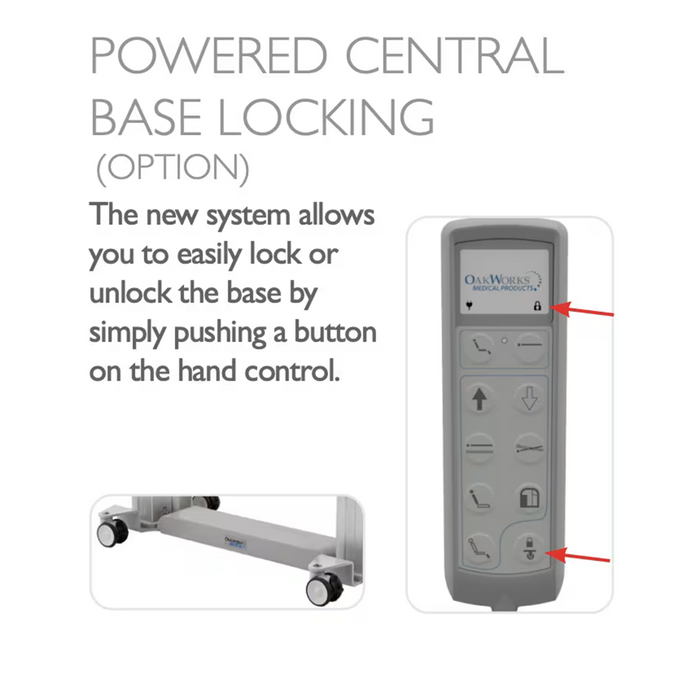

  • Central Base Locking System
  • Foot Control - Height, Trendelenburg/Reverse, Fowler, Leg Section (H-T-B)
  • Side Rails - Set of 2: 25.5" (65cm) long x 6" (15cm) tall(from surface of table)

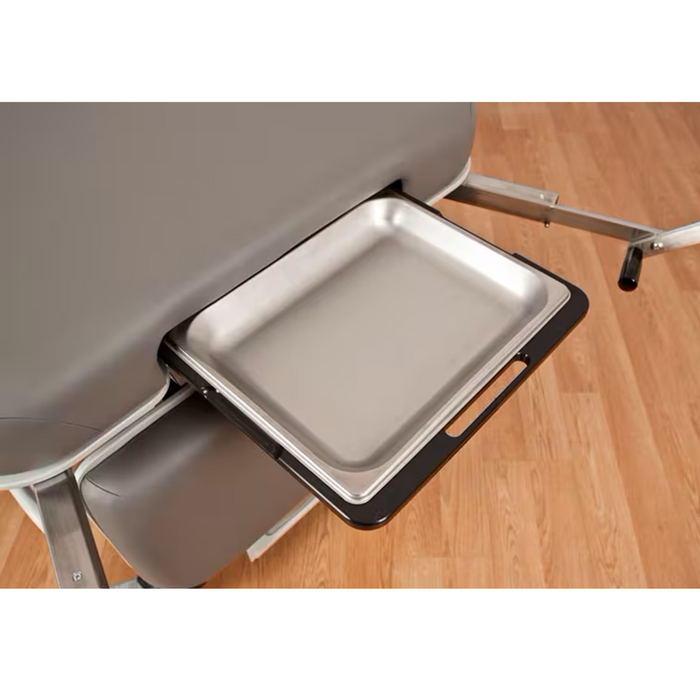

  • Procedure Tray - 12.25" (6cm) x 10.25" (26cm) and holds 2 quarts (1.9 liters)

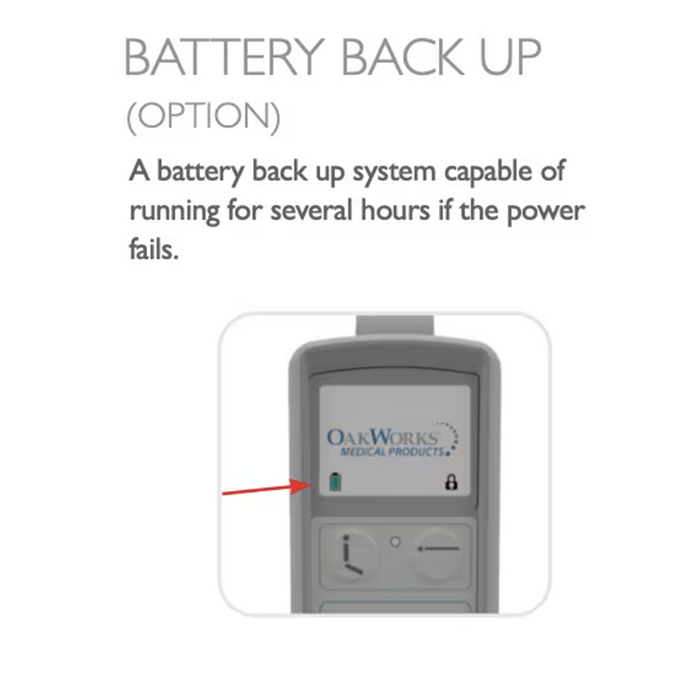

  • Battery Backup - Capable of running during power failure

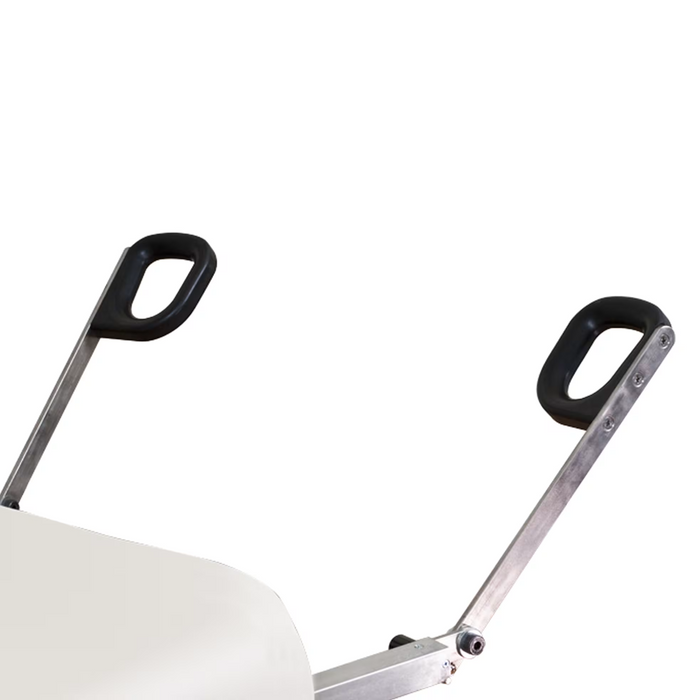

  • Retractable Foot Rests - Stirrups

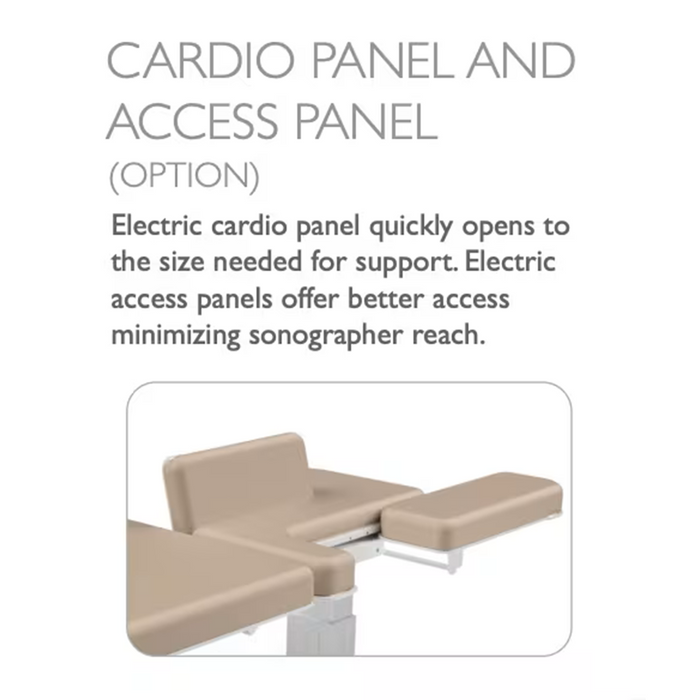

  • Cardio Panel and Adjustable Access Back Support
  • Electric Sliding Cardio Panel open 15" (38cm)
  • Left side Electric Access Panel opens 10" wide (25cm) x 22" long (56cm) - right side (Available on 30" width only)

Recommended accessories:

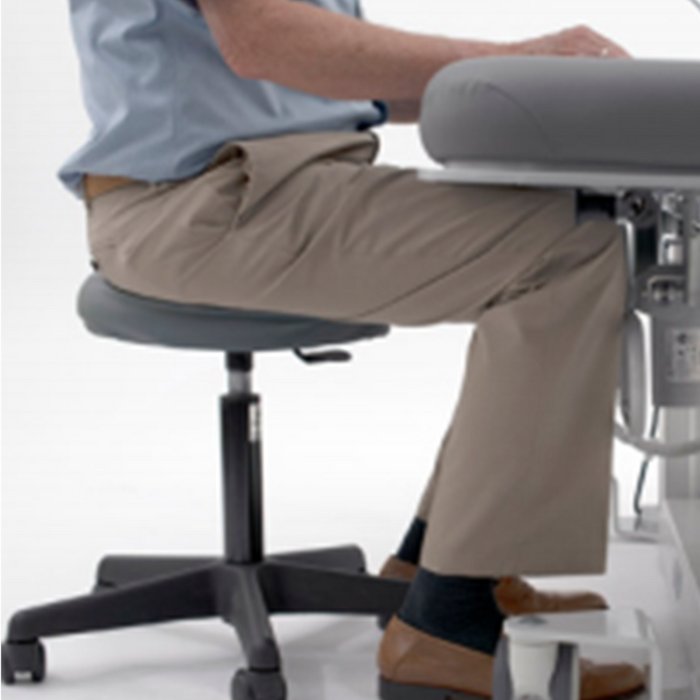

  • Stools - Durable & comfortable, support 300 lbs., simple pneumatic height adjustments.
  • Detatchable Arm Board - Use w/ T-Rail adapter 5" (13cm) wide x 20.5" (52cm) long
  • T-Rail Adapter - 8" (20cm) long. Attached to the backrest for use with USA format T-rail attachable accessories
  • Table Extender - 24" (61cm) wide x 12" (30cm) long
  • QuickLock™ Head Rest (black) & AeroCel Pad - Comfortable, adjustable prone or supine support

This equipment requires special configuration and choice of options. Please contact your sales representative or customer service for further information.
