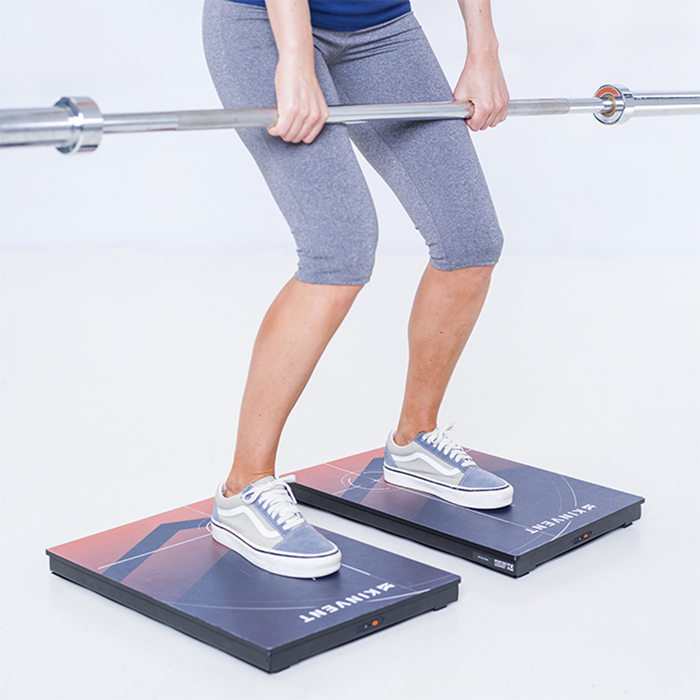

K-Deltas elite force plates

K-Deltas elite force plates

by Kinvent
# MP.33.03.FN
> 0.00 $ - 0.00 $
0.00 $
Price to be confirmed
0.00 $ - 0.00 $
Price to be confirmed
Non-stock
Special order, non returnable item, non exchangeable item.
Overweight / oversize item.
Manufacturer Warranty: 2 Years

K-Deltas

The perfect solution for measuring physical performance.

The K-Deltas are ideal for managing the return-to-sport process for patients and athletes or supporting athletes in their pursuit of performance.

VERSATILE PERFORMANCE ANALYSIS

Measure performance quickly and in a fully versatile way compared to other systems on the market. Their key strengths: an innovative design, a load capacity of 2 tons per platform, and a high sampling rate.

JUMP ANALYSIS AND FUNCTIONAL ASSESSMENTS

Evaluate jump height and obtain insights into the impulse phase using advanced jump protocols. Track your patient’s progress across all dynamic activities (squats, push-ups, etc.) and balance exercises.

FORCE AND SPEED ANALYSIS

Measure the optimal load for maximum power. Rehabilitate balance and assess symmetry and lower-limb muscle strength.

TEAM STATISTICS

Measure the ratio between an athlete’s ballistic peak force and their isometric peak force.

JUMP ANALYSIS

Counter Movement Jump and Squat Jump (CMJ & SJ) protocols: assess jump height and obtain key indicators during the impulse phase on push-off, power, explosive force, RFD (Rate of Force Development), and left/right distribution. Drop Jump (DJ) protocol: obtain jump height after landing, force development during ground contact, and the RSI (Reactive Strength Index).

STATIC AND DYNAMIC BALANCE

These force platforms are dedicated to advanced sports performance analysis. Connected via Bluetooth to the Kinvent Physio app, the K-Deltas help you manage the most efficient return-to-play process for your athletes.

TURNKEY PROTOCOLS

Force/Velocity Spectrum Profile: measure the optimal load for maximum power, a cutting-edge test in biomechanical strength and conditioning. Guide your training towards one of these two opposing components.

Dynamic Strength Index (DSI): obtain the ratio between an athlete’s ballistic peak force and their isometric peak force. This protocol includes the isometric mid-thigh pull (IMTP) peak force and the ballistic peak force during the counter-movement jump (CMJ).

Unilateral CMJ/SJ: highlight left/right differences in push-off, force, power, RFD, and jump height.

Technical Specifications

  • Requirements: K-Deltas operate with Android 5.0+ and iOS 10.0+, with "Bluetooth Low Energy 5.0".
  • Weight: Each platform weighs 8.8 kg.
  • Wireless Range: Up to 20 meters.
  • Maximum Force: The maximum force each platform can withstand is 2000 kg and 500 kg per foot.
  • Battery Life: The battery lasts for 20 hours and requires 2 hours to charge, compared to the previous K-Deltas, which had a 12-hour battery life.
  • Accuracy: Precision with a margin of error of 0.1% of the reading.
